Introduction
When you sit on a bar stool and effortlessly turn to face a different direction, you’re experiencing a small marvel of engineering. The humble swivel bar stool base is the unsung hero of home bars, kitchens, and commercial spaces, providing both functionality and comfort. But have you ever stopped to wonder how it actually works? What mechanism allows for that smooth, continuous rotation while supporting your weight safely?
This article delves into the inner workings of a bar chair base, explaining the core components, the different types of mechanisms, and what makes a high-quality swivel stool. Understanding this mechanism will not only satisfy your curiosity but also help you make an informed decision for your next purchase.
At its heart, a swivel bar stool base is not a single part but a system of components working in unison. The main parts include:

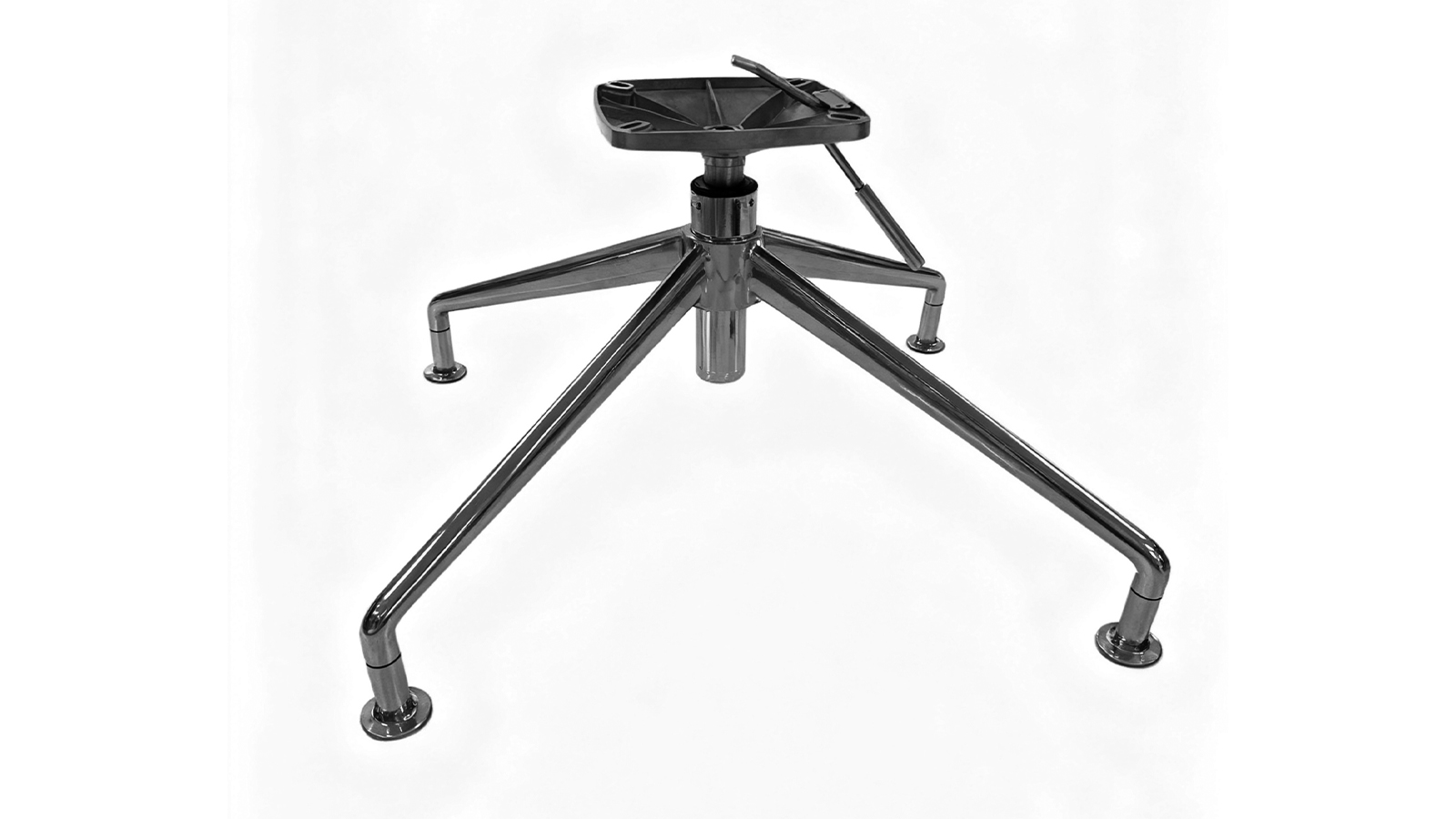

1.The Base: This is the foundational, typically star-shaped, component that sits on the floor. It provides stability and prevents the stool from tipping over. It’s usually made from heavy-duty metal like steel or cast iron and fitted with non-marking floor glides.
2.The Gas Lift (Pneumatic Cylinder): This is the component that allows for height adjustment. While not directly responsible for the swivel, it’s a crucial part of the modern bar stool's functionality. It consists of an outer cylinder and an inner piston filled with pressurized nitrogen gas.
3.The Swivel Mechanism Assembly: This is the core of the rotation. It’s typically a sealed unit located either:
· Beneath the seat: Connecting the seat directly to the top of the gas lift.
· · Between the gas lift and the base: Connecting the base to the bottom of the gas lift.
4.The Seat: The top part of the stool that you sit on, which is attached to the swivel assembly.
The magic of the swivel happens thanks to a simple but highly effective component: the thrust bearing (often a ball bearing assembly).
Here’s a step-by-step breakdown of the process:
1.The Role of the Thrust Bearing: A thrust bearing is designed to handle axial loads—meaning loads applied parallel to the bearing’s rotation axis (in this case, your body weight pushing straight down). It allows for smooth rotation between two parts that are under a significant amount of pressure.
2.Distributing the Load: When you sit on the stool, your weight is transferred from the seat down to the swivel assembly. The thrust bearing inside this assembly is engineered to bear this load. The balls or rollers inside the bearing raceway minimize the surface area in contact, which drastically reduces friction.
3.Enabling Rotation: Because the bearing reduces friction to a minimum, it requires very little force to overcome the static friction and initiate movement. When you twist your torso, the force is transferred to the seat, which then rotates the top race of the bearing against the stationary bottom race. The balls or rollers glide smoothly in their track, allowing for continuous, 360-degree rotation without any grinding or resistance.
4.Integration with the Gas Lift: In most modern stools, the swivel mechanism is integrated with the top of the gas lift cylinder. You have a swivel plate attached to the seat, which houses the bearing. This plate sits on top of the gas lift piston. When you rotate, the entire seat and the swivel plate assembly rotate around the fixed top of the gas lift.
Not all swivel mechanisms are created equal. The main types you’ll encounter are:
· Integrated Bearing Swivel: This is the most common and reliable type in quality stools. It features a fully enclosed, pre-lubricated ball bearing system, as described above. It offers the smoothest and most durable performance.
· Simple Bushings or Plastic Washers: In very low-cost stools, manufacturers might forgo a proper bearing and instead use a plastic bushing or a nylon washer between two metal plates. While this allows for rotation, it is far less smooth, wears out much faster, and can become squeaky over time. This is not a true swivel bar stool base mechanism and is best avoided for frequent use.
· Stationary (Non-Swivel) Base: For comparison, a stationary bar chair base is fixed. It has no bearing assembly, meaning the seat is bolted rigidly to the base or gas lift, preventing any rotation.
When shopping for a bar stool, the quality of the swivel bar stool base is paramount for safety and longevity. Here are key indicators of a well-made mechanism:
· Smooth and Quiet Operation: The swivel should feel buttery smooth, not gritty or jerky. It should rotate quietly without any squeaking or grinding noises.
· Stability: A good swivel stool should feel rock-solid when you’re sitting still. There should be no wobble or side-to-side play in the mechanism. This is a sign of poor construction or weak materials.
· Weight Capacity: Always check the manufacturer's stated weight capacity. A high-quality swivel mechanism and a sturdy bar chair base will support significant weight, often 250 lbs (113 kg) or more.
· Material: The base itself should be made from a robust material like reinforced steel. A heavier base contributes greatly to overall stability.
Conclusion
The swivel bar stool base is a perfect example of how simple engineering principles can dramatically enhance everyday comfort and convenience. Through the clever use of a thrust bearing, it masterfully manages the competing demands of supporting heavy axial loads while enabling effortless, low-friction rotation.
Now that you understand the mechanism inside your bar chair base, you can truly appreciate its design and make a smarter choice for your home or business. Remember to look for a stool with a high-quality integrated bearing system, a stable base, and a robust build to ensure years of smooth and reliable service.
